Monitoring

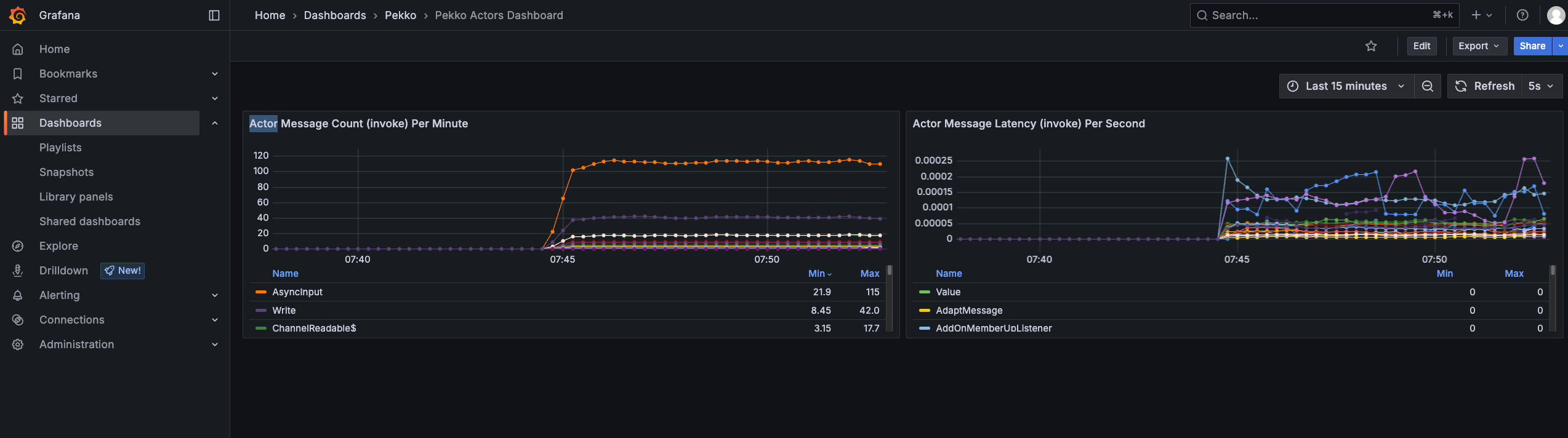

Monitoring Dashboard

This guide demonstrates how to set up and use the built-in monitoring capabilities of Spring Boot Starter Actor to observe and analyze your actor system's performance.

Overview

The monitoring example shows how to:

  • Set up a complete monitoring stack with Prometheus and Grafana
  • Collect and export metrics from your actor system
  • Visualize actor performance metrics in real-time
  • Track message processing times and throughput
  • Monitor cluster health and resource usage

This example provides insights into how Spring Boot Starter Actor can be used to observe and optimize your application's performance without complex configuration.

Complete Monitoring Stack

The example includes a pre-configured Prometheus + Grafana stack ready to use with Docker Compose.

Key Components

Metrics Module

The Metrics module provides instrumentation for Pekko actors to collect performance metrics. It uses a Java agent to intercept method calls and capture timing information.

# Include the Java agent when starting your application
java -javaagent:metrics-{version}-agent.jar -jar your-application.jar

Java Agent Required

The metrics module requires running with the Java agent to collect actor performance metrics.

ActorInstrumentationEventListener

The ActorInstrumentationEventListener allows you to capture metrics about actor message processing:

// Register a listener for actor messages
ActorInstrumentationEventListener.register(new InvokeAdviceEventListener() {
    @Override
    public void onEnter(Envelope envelope) {
        // Called when a message is about to be processed
    }

    @Override
    public void onExit(Envelope envelope, long startTime, Throwable throwable) {
        // Called when message processing is complete
        // Calculate duration: System.nanoTime() - startTime
    }
});

Metrics Exporter

The ActorClusterMetricsExporter shows how to export metrics to Prometheus via Micrometer:

@Component
public class ActorClusterMetricsExporter {
    private final MeterRegistry registry;
    private final ConcurrentHashMap<String, Timer> invokeTimers = new ConcurrentHashMap<>();
    private final ConcurrentHashMap<String, Counter> invokeCounters = new ConcurrentHashMap<>();

    // Define which message types to track
    private final Set<Class<?>> targetClasses = Set.of(
        ChatRoomActor.JoinRoom.class,
        ChatRoomActor.LeaveRoom.class,
        ChatRoomActor.SendMessage.class
    );

    public ActorClusterMetricsExporter(MeterRegistry registry) {
        this.registry = registry;
    }

    @PostConstruct
    public void registerMetrics() {
        ActorInstrumentationEventListener.register(new InvokeAdviceEventListener() {
            @Override
            public void onEnter(Envelope envelope) {}

            @Override
            public void onExit(Envelope envelope, long startTime, Throwable throwable) {
                if (!targetClasses.contains(envelope.message().getClass())) {
                    return;
                }

                String messageType = envelope.message().getClass().getSimpleName();

                // Record timing metrics
                Timer timer = invokeTimers.computeIfAbsent(messageType, mt ->
                    Timer.builder("pekko.actorcell.invoke.timer")
                         .description("Time spent processing messages")
                         .tags("messageType", mt)
                         .register(registry)
                );

                // Record count metrics
                Counter counter = invokeCounters.computeIfAbsent(messageType, mt ->
                    Counter.builder("pekko.actorcell.invoke.count")
                           .description("Count of messages processed")
                           .tags("messageType", mt)
                           .register(registry)
                );

                long duration = System.nanoTime() - startTime;
                timer.record(duration, TimeUnit.NANOSECONDS);
                counter.increment();
            }
        });
    }
}

Setting Up the Monitoring Stack

Spring Boot Starter Actor includes a ready-to-use monitoring stack with Prometheus and Grafana, managed via Docker Compose.

1. Start the Monitoring Stack

Navigate to the monitoring directory and start the stack:

cd scripts/monitoring
docker-compose up -d

This will start:

  • Prometheus at http://localhost:9090
  • Grafana at http://localhost:3000

Default Credentials

Grafana default credentials are admin/admin. You'll be prompted to change the password on first login.

2. Configure Your Application

Ensure your application exposes metrics via Spring Boot Actuator:

# application.yaml
management:
  endpoints:
    web:
      exposure:
        include: health,info,prometheus
  metrics:
    export:
      prometheus:
        enabled: true

3. Access the Dashboards

Open Grafana at http://localhost:3000 (default credentials: admin/admin) to view the pre-configured dashboards.

Pre-Configured Dashboards

The monitoring stack includes pre-built dashboards for actor metrics, showing message processing times, throughput, and more.

4. Shutdown When Done

cd scripts/monitoring
docker-compose down -v

Data Persistence

Using -v flag removes volumes, which deletes all metrics data. Omit -v if you want to preserve data between restarts.

Summary

  • Collect performance data with the metrics module and Java agent
  • Visualize with Prometheus and Grafana using pre-configured dashboards
  • Monitor actor performance including message processing times and throughput
  • Track cluster health and resource usage across all nodes

Production Monitoring

This monitoring setup is production-ready and can be adapted to your specific infrastructure needs.
